SM5DXT
Site under construction
HF, VHF/UHF
CW, Phone, Digital
Base, Mobile, Portable
Winlink RMS, APRS

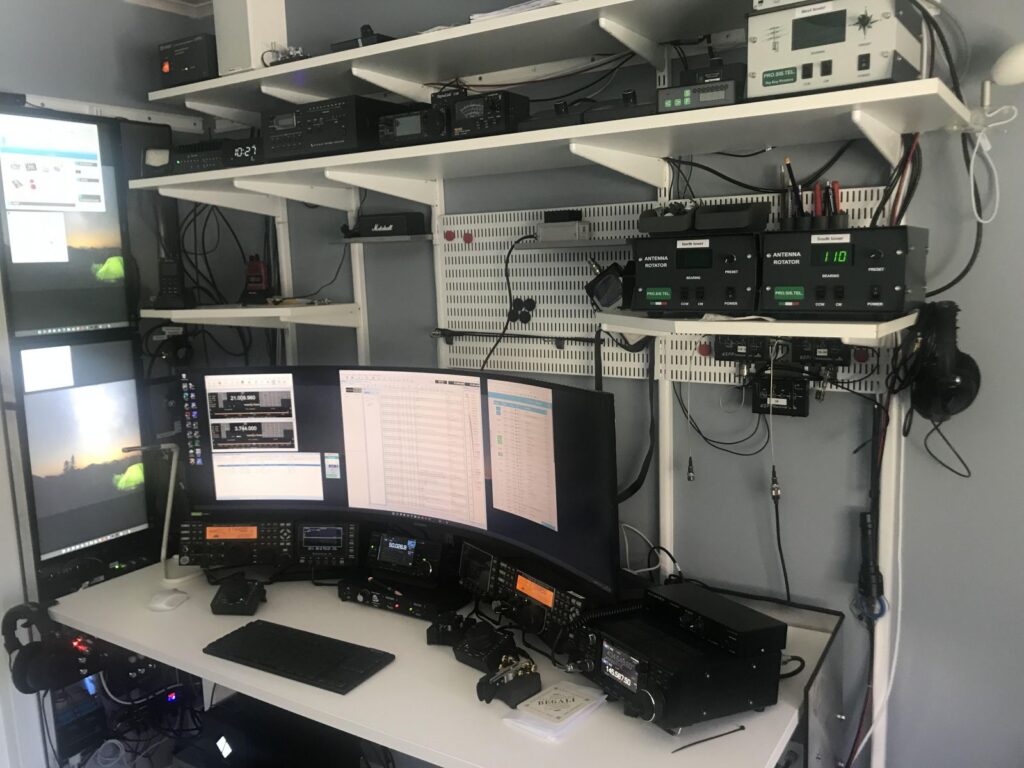

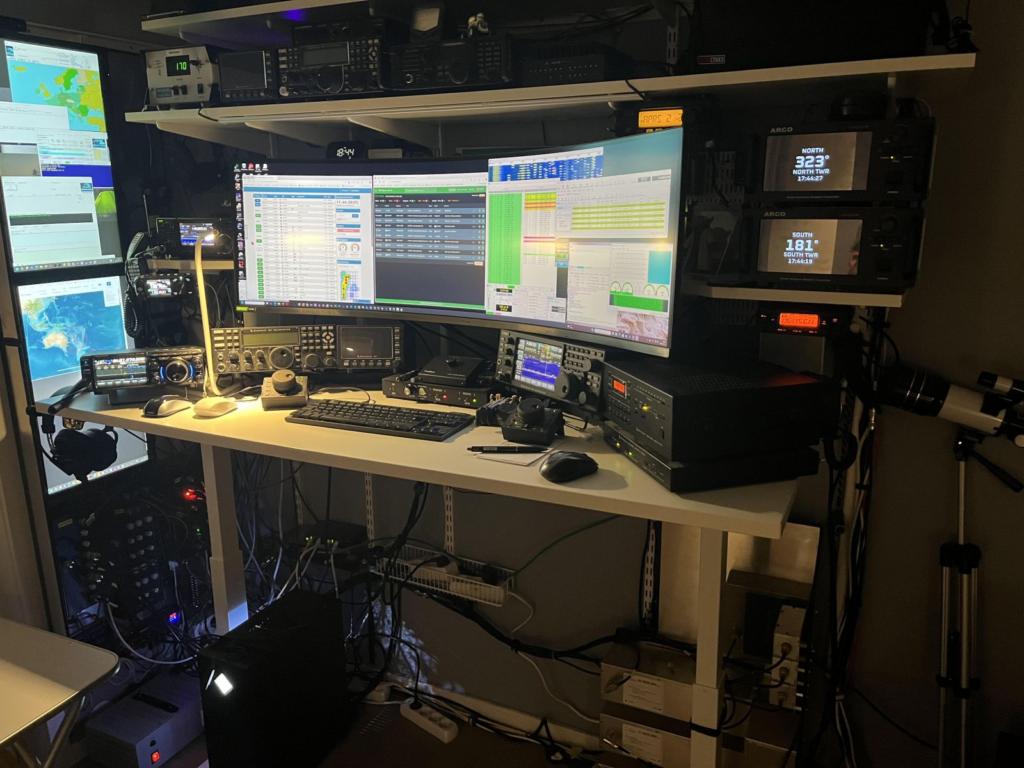

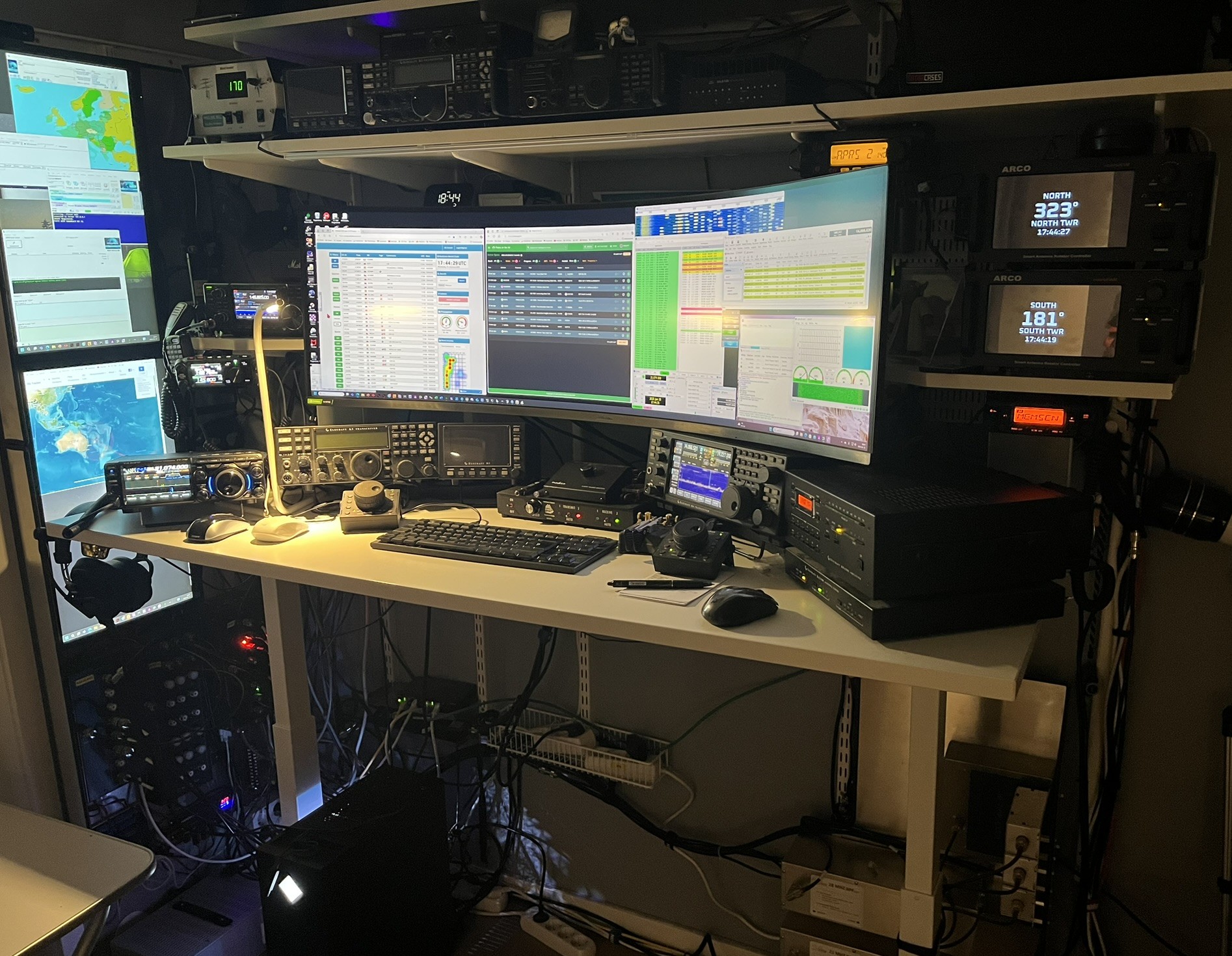

Operating positions
Possible to operate in standing or sitting position by adjusting the motordriven
table. For long period of operations such as contesting sitting position is more comfortable over time. But on daily basis when operation now and then I do prefer the statnding position
Interest and philosofy
Ham Spritit
aaa
Activites
Effektiv .
HF Band
..
VHF/UHF
..
Do not
.
Services for Emergency Communications & Position and Reporting

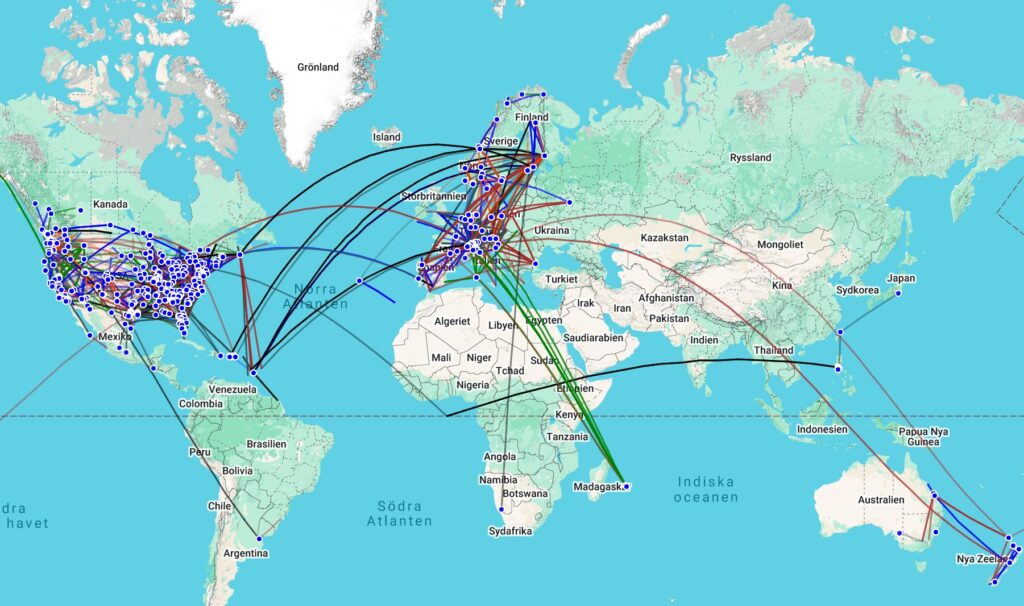

Ehrendal HF Winlink RMS Hybrid VARA Gateway
SG5DXT – 24/7/356 with high availability
Check actual fq and QRV-time on Winlink internet site Live System Information | Winlink Global Radio Email . Sometimes fq and QRV schedule is changed due to current conditions.
Basic Winlink Gateway configuration, daily:
– Callsign: SG5DXT
– Centerfq 60m: 5356.0 KHz (5354.5KHz on dial, USB or DATA). Tx pwr 15w. QRV: 1800z-0800z
– Centerfq 40m: 7060.0 KHz (7058.5KHz on dial, USB or DATA). Tx pwr 50w. QRV: 0800z-1800z
– Radio: Icom IC-7200.
– Antenna: Dipole (T2FD)
– Modem: VARA
– Gateway system: Winlink RMS Trimode and Winlink Relay in Hybrid mode.
– QTH: Ehrendal, Gnesta
Power Supply
The station operates using a 12V/550Ah battery bank connected to a 220V inverter. During grid outages, the battery bank is replenished by 500W solar panels.
If you have specifik questions regarding SG5DXT Wilink Gateway form!

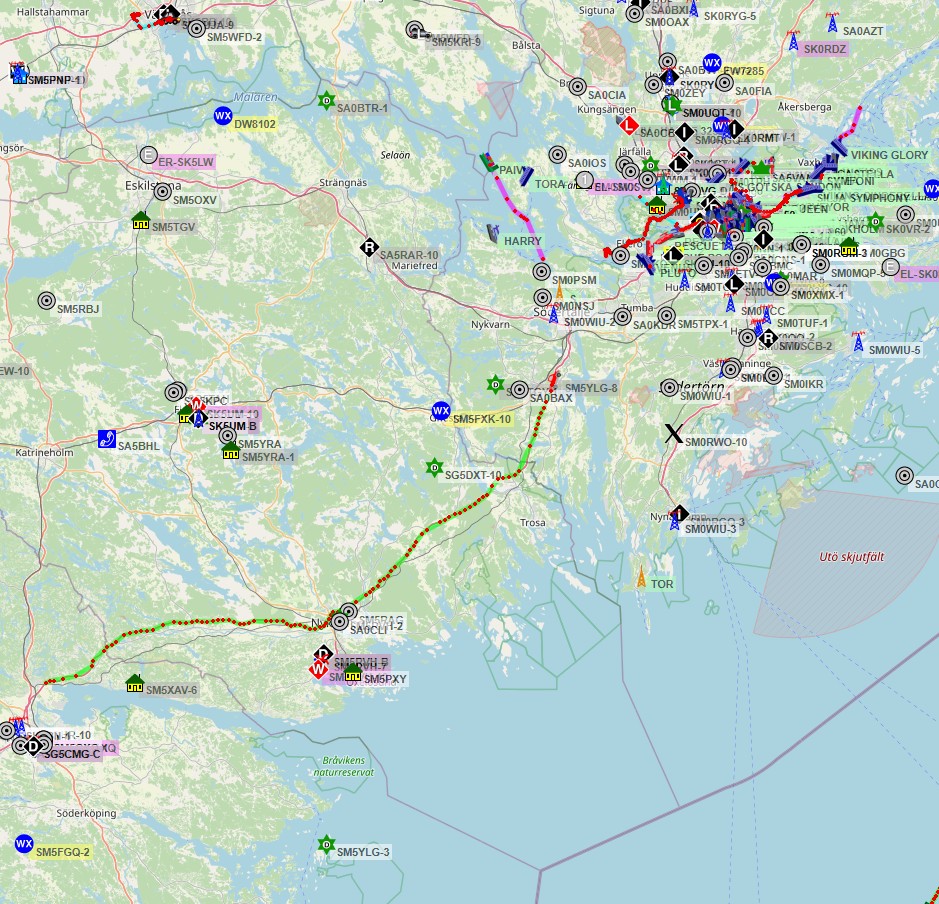

APRS iGate and Digipeater,
increase APRS coverage in the local rural area
SG5DXT
-Callsign: SG5DXT
-Fq: 144.8MHz
-QRV: Normally daily 08-18z, occasionally 00-24z.
-Radio: Yaesu FT2980, 30w
-Antenna: Diamond X50, 18mtr up in tower. PHG51404.
-APRS device: Microsat WX3in1Plus2.0 advanced digipeater&iGate
VHF/UHF Kommunikation
To be continued
POTA
Including actual activities
150
Winlink Gateway
6000+
APRS Gateway
450
Radiotrafik
Hamradio in the modern world …
Text
HAMRADIO – the hobby with ….
—
Ham Radio Spirit brings people together ….
Parks on the AIR (POTA) – combines radio technical challenges, radiocommunication ctivities, nature and friendship.
